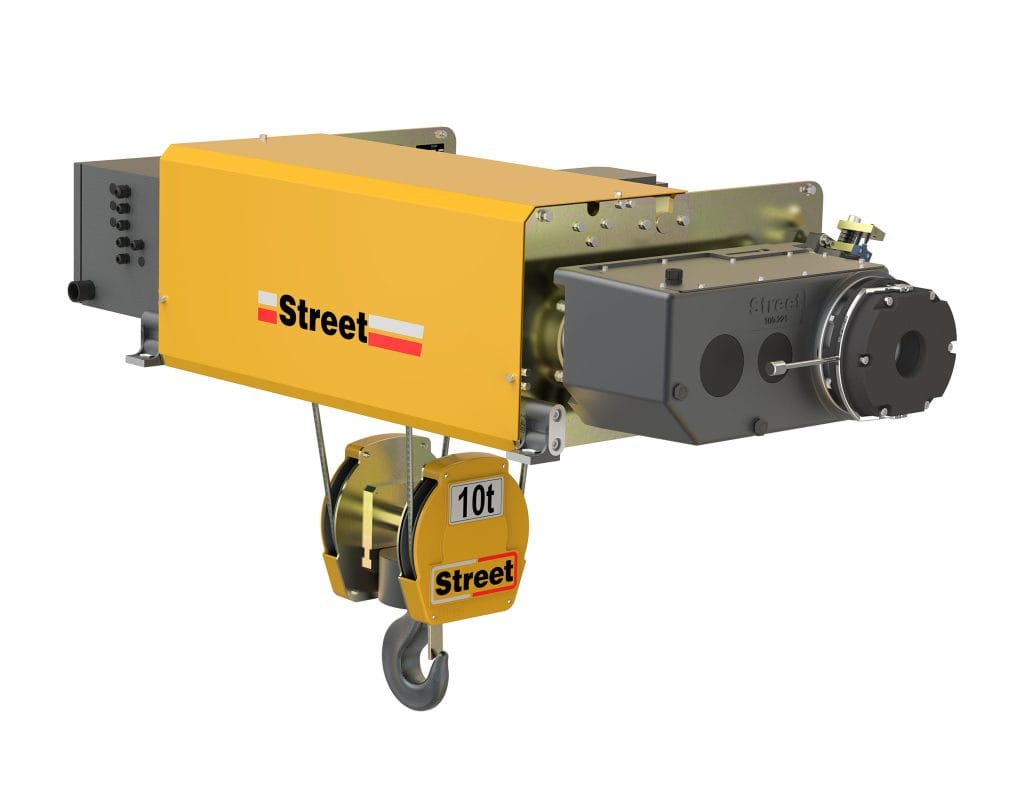

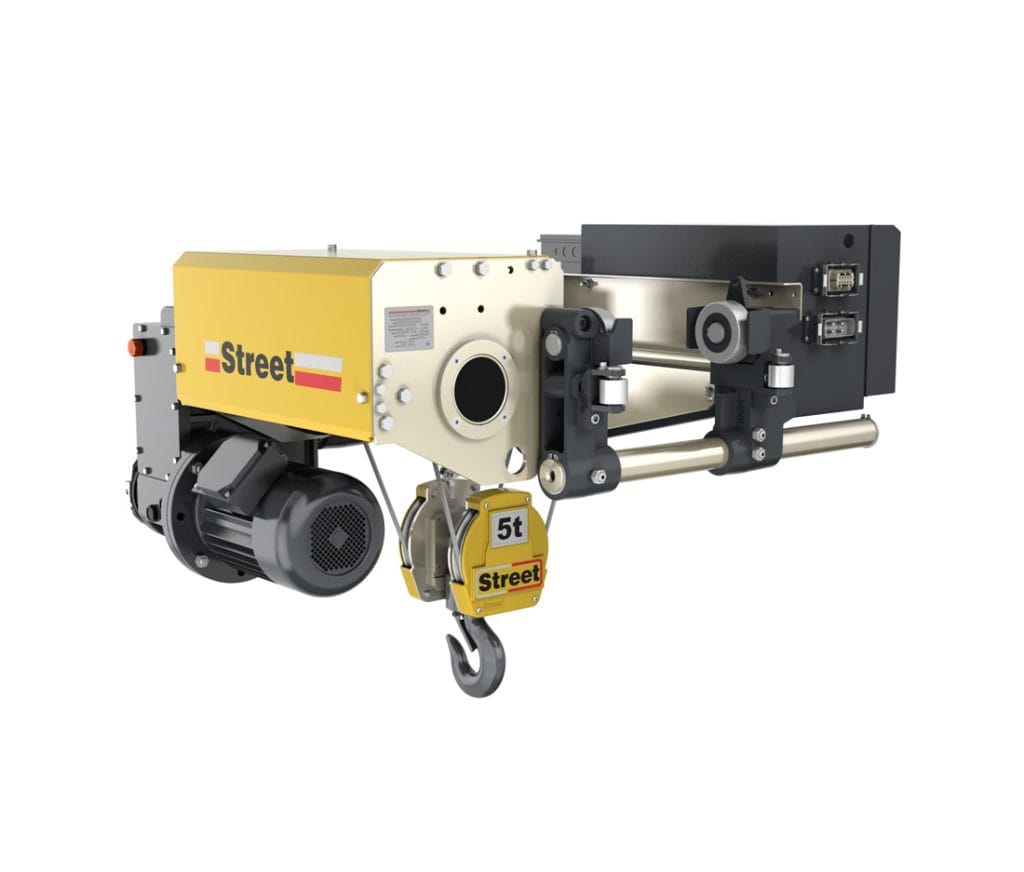

Electric Wire Rope Hoists (ZX)

Name: Electric Wire Rope Hoists (ZX)
Brand: Street Crane
Availability: InStock

Rated lifting capacities up to 88 tons

British-engineered lifting. Local US supply, service and support.

The Street ZX Hoist: Our All-Purpose Workhorse with Genuine Differences.

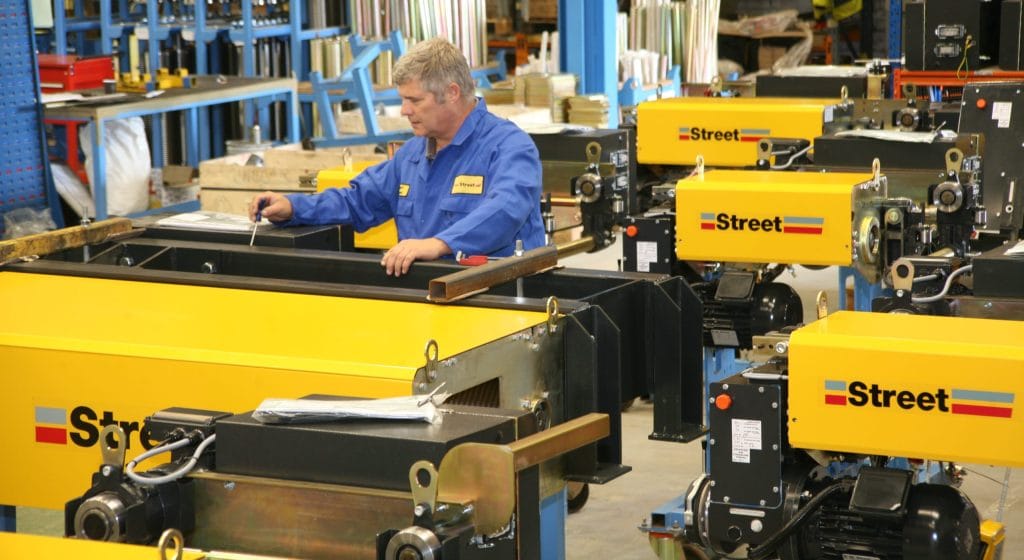

The first generation Street ZX electric wire rope hoist was developed in the late 1990s and quickly became the best-selling hoist product in Street’s history, firmly establishing the company as a global hoist manufacturer. From the outset, the ZX hoist was designed with ease of inspection and maintenance as a core design principle. This approach resulted in a strong reputation for reliability and long service life, with a proven record across a wide range of industrial applications and operating environments worldwide.

Every function of the latest generation ZX hoist has been thoroughly reviewed and enhanced with a series of engineering innovations to deliver new levels of usability, performance, and durability. The hoist’s service-friendly design reduces inspection time, simplifies routine maintenance, and minimizes repair downtime—resulting in significant reductions in maintenance and repair costs over the life of the hoist. Compared to competing designs, these lifecycle efficiencies can save many thousands of dollars over the operating life of the hoist, while incorporating state-of-the-art technology required for demanding industrial service.

Get world-class, UK-manufactured lifting technology delivered without the wait. Street Crane’s premium hoists and components are fully stocked in the US and ready for immediate domestic shipping.

ZX hoist key features

Superior hoist braking safety

On many conventional wire rope hoists, the brake is mounted on the hoist motor shaft. In this configuration, the brake cannot hold the load in the event of a failure of the motor shaft, motor coupling, or motor connection. The Street ZX hoist is engineered differently.ZX hoists are designed with the brake mounted directly on the hoist gearbox rather than the motor. This braked gearbox arrangement ensures that the load is securely held even in the event of motor shaft, coupling, or connection failure—and will continue to hold the load even if the hoist motor is completely removed. In addition to this critical safety advantage, separating the brake from the motor reduces heat transfer into the motor, resulting in lower motor operating temperatures, improved efficiency, and extended motor service life.

No external or open hoist gears

The Street ZX achieves higher reliability and lower lifetime operating cost by eliminating open gearing from the hoist transmission. This is accomplished through the use of fully hardened and precision-ground gears operating in a continuous oil bath within a robust, sealed hoist gearbox. This design ensures consistent lubrication, reduced wear, and long-term durability in demanding industrial environments.By contrast, some conventional hoists drive the hoist drum using an external pinion and spur ring located outside the gearbox—often selected to minimize initial purchase cost. However, external gearing relies on consistent grease maintenance and is exposed to contamination and wear. Inadequate lubrication of these open gears can quickly lead to accelerated wear, unplanned downtime, and costly repairs. The ZX enclosed, oil-bath gearbox design significantly reduces maintenance requirements and helps avoid these failure modes, delivering a lower total cost of ownership over the life of the hoist.

Hand brake release

Conventional hoists do not have a hand brake release but there are circumstances when the ability to lower a load without power to the brake is crucial, hence it is standard on ZX hoists.

Unique solution to prevent ‘slack rope’ failures

With many other hoist designs, an accidental slack-rope condition—such as when the hook is lowered too far—can allow the wire rope to pull through a single-band rope guide. This can result in damage to the hoist wire rope and/or the rope guide, leading to increased maintenance, unplanned downtime, and premature component replacement.The Street ZX avoids this failure mode through its unique double-band rope guide design. A rotating inner band positively clamps the rope to the drum and prevents pull-through, even during accidental slack-rope events. The inner band is guided by a fixed outer band, maintaining continuous rope control and effectively eliminating failures associated with slack rope.

Unique fail-safe hoist drum

All ZX6 and ZX8 hoists have a continuous shaft through the hoist drum, plus specifically designed drum retention flanges. This arrangement ensures that should the drum fail the rope will be retained by the shaft and conversely should the shaft fail, the retention flanges will retain the drum and shaft.

Additional protection against overloading

ZX hoists have a unique torque arm capacity restrictor between gearbox and hoist frame which senses the total load transmitted by the hoist mechanism, not just the load on the ropes. The device not only protects against an operator accidentally attempting a load greater than capacity, but also protects against an overload caused by impedance of hoist rotation. It does not rely on measuring motor current which can vary due to other factors.

Unique electrical specification and protection

ZX hoists are available in the USA, Canada with certification to UL or CSA standards. Quick release plug and socket connections are standard and all panel wiring is identified with termination connection reference. Every hoist is equipped with an ‘hours in service meter’ continuously recording the total running time since commissioning.

Variable speed trolley drive

Variable frequency drive (VFD) is standard on the trolley and programmed for ramp and hold with a two-position controller. This allows the operator to start at micro-speed and ramp up towards full speed, with the ability to hold any speed in between. Alternatively, the standard controls are simple to program for two pre-set speeds.

Heavy duty external hoist motor

The ZX hoist motor is mounted externally for optimum cooling and maximum accessibility. Motor insulation is a minimum of Class F and overheating protection in the windings is standard. The motor is duty rated strictly in accordance with hoist classification and protected against ingress of dust particles and water in accordance with IP55 (NEMA 3R).

The ZX Range

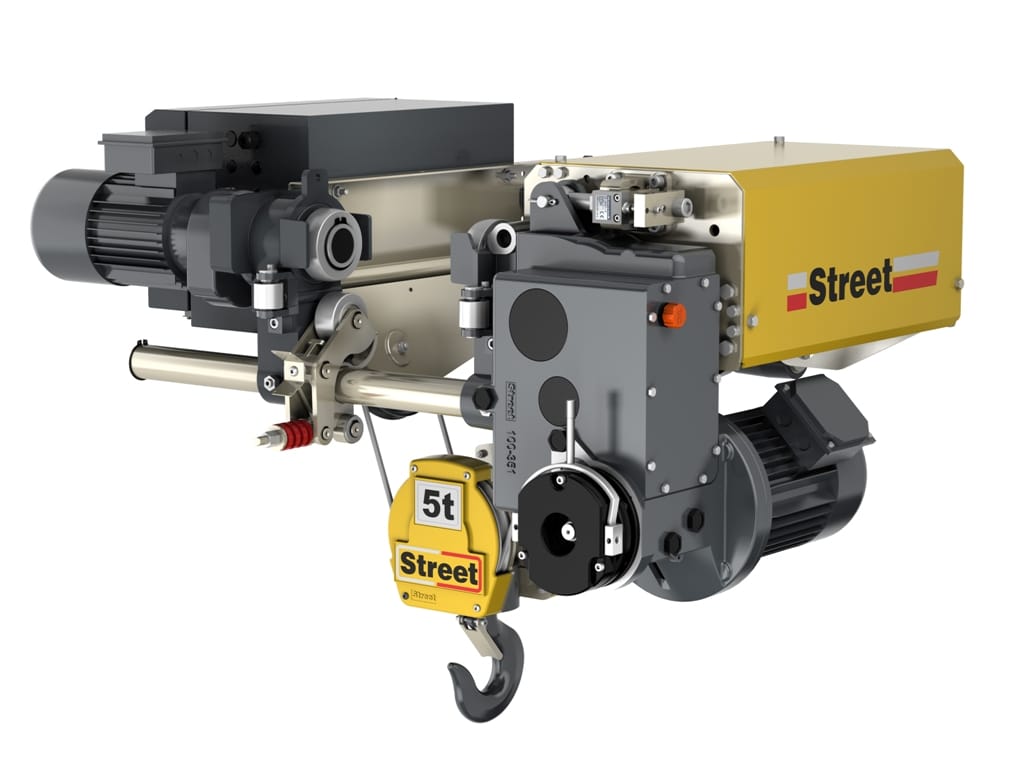

ZX low headroom electric wire rope hoist with single monorail trolley

Capacities up to 16 tons

The Street ZX Low Headroom Monorail Hoist range of low headroom monorail hoists is mounted on a single trolley equipped with four flangeless wheels and guide rollers, designed to operate on the bottom flange of a single beam or girder. A reaction roller eliminates the need for a counterweight, reducing wheel loads and minimizing stress on the supporting structure. This compact construction allows for a higher top hook position in restricted headroom applications compared to conventional standard-headroom hoist designs.

The following ZX-exclusive design features enhance safety, performance, and long-term reliability, while reducing total cost of ownership by allowing inspection and service tasks to be completed quickly and efficiently:

Gearbox-mounted hoist brake that securely holds the load even in the event of motor shaft, coupling, or connection failure
Double-band rope guide that eliminates slack-rope conditions and prevents rope and guide damage
Fully enclosed gear train, including final reduction, housed within a sealed gearbox with continuous oil-bath lubrication
Unique torque-arm overload protection device that also prevents drivetrain damage if free drum rotation is restricted
Gearbox inspection cover allowing visual inspection of gears without dismantling the hoist
Motor coupling inspection portal enabling inspection of the coupling without hoist disassembly
Fail-safe hoist drum design incorporating an internal safety shaft and retention spigots
Externally mounted, removable fan-cooled motors, with cooling fins on all crane motions for improved thermal performance and service access
Stepless variable-speed control on the traverse motion, providing smooth operation and precise load positioning

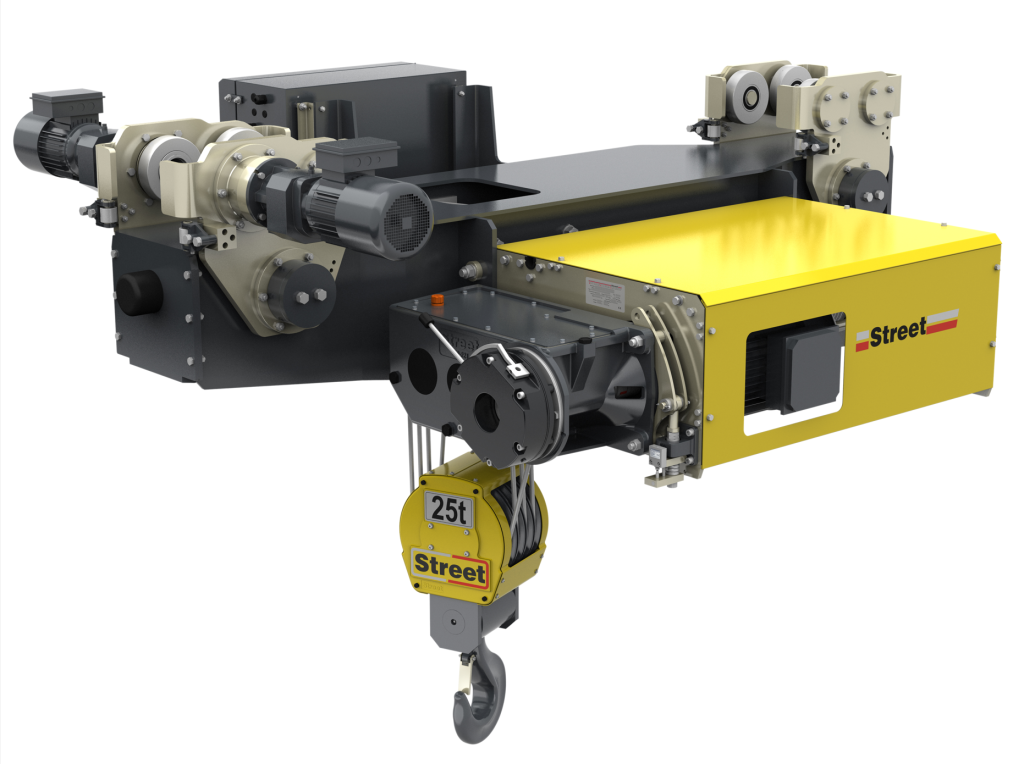

ZX8 high capacity electric wire rope monorail hoist

Capacities up to 28 tons

Most crane and hoist manufacturers offer standard-headroom monorail hoists above 12–15 tons. By contrast, Street Crane extends our monorail range to capacities up to 28 tons through the use of a double-trolley design. This approach allows maximum capacity and manages wheel loads with double 4-wheel trolleys.

Each trolley is supported by four flangeless wheels with guide rollers, and a reaction roller eliminates the need for a counterweight—reducing wheel loads and minimizing stress on the supporting beam or girder. This construction delivers a higher top hook position in restricted headroom compared to conventional standard-headroom hoist designs.

All hoists in this range are based on the Street ZX8 frame and are available with six or eight falls of wire rope in a single reeved configuration. Multiple combinations of brakes, motors, gearboxes, and drum diameters allow a wide range of lifting speeds, duty classifications, and heights of lift to be configured to match specific application requirements.

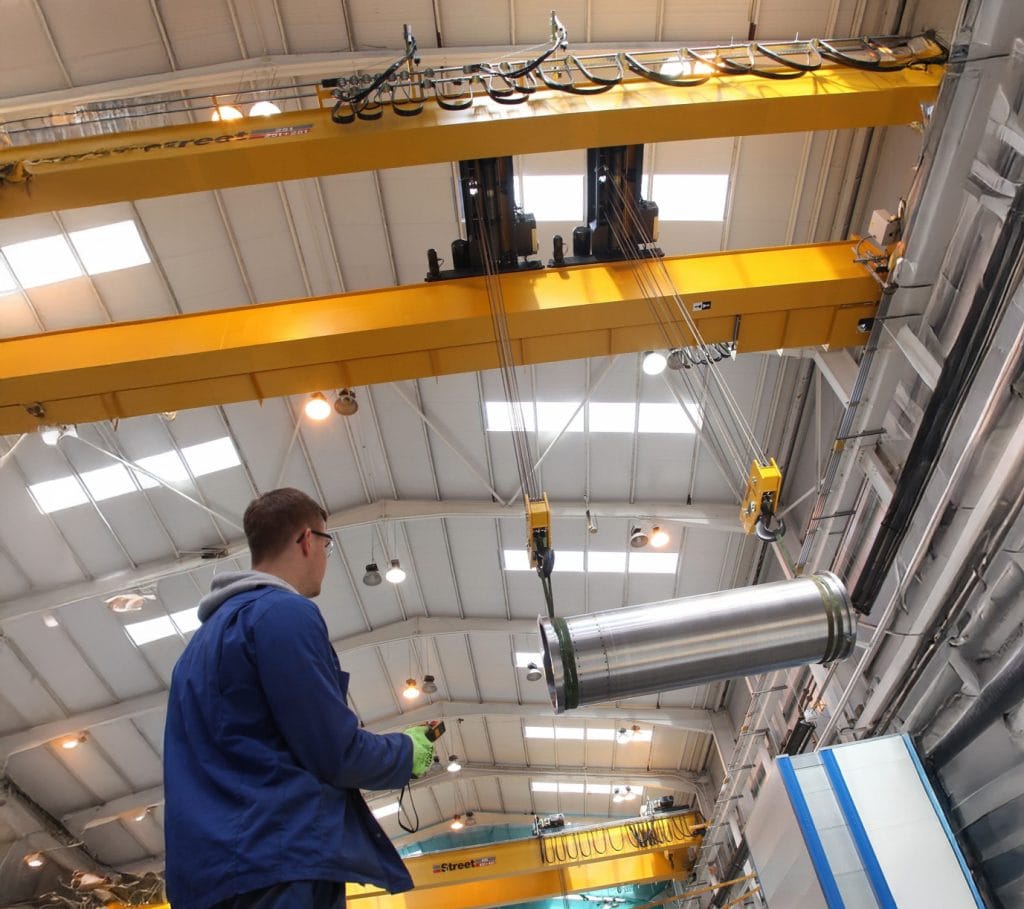

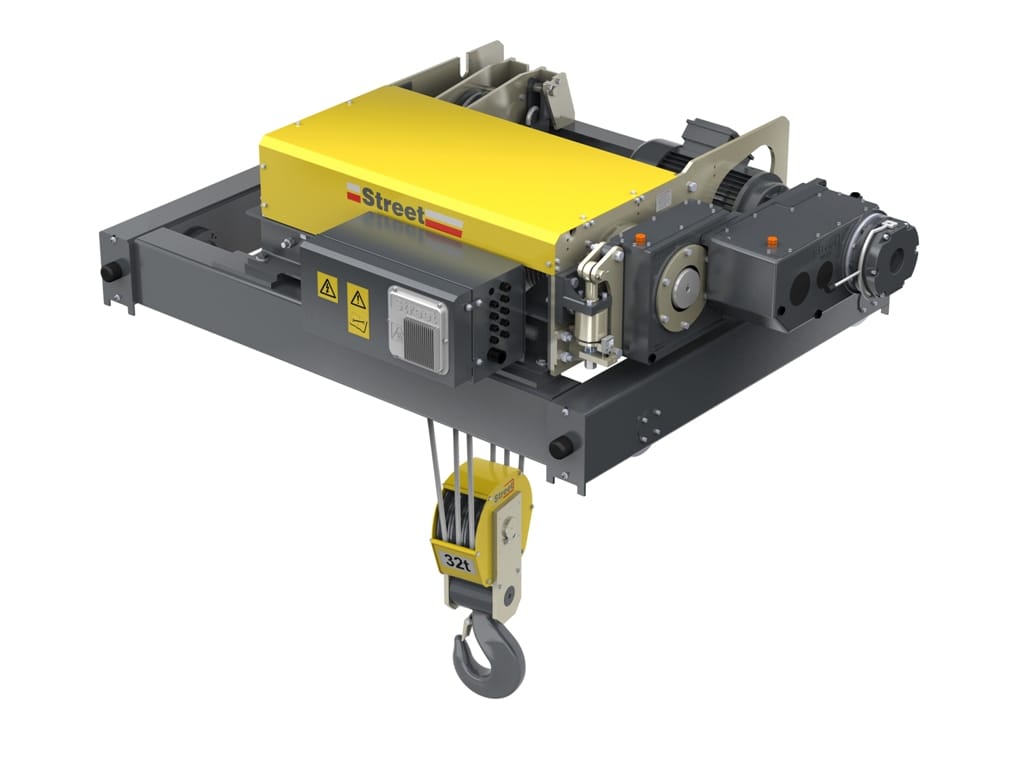

ZX electric wire rope hoist with top running double girder trolley

Capacities up to 88 tons

Street ZX hoists mounted on a double-girder trolley are available with a single reeved hoist drum in capacities up to 35 tons, and with a double-reeved hoist drum in capacities up to 90 tons, providing a true vertical lift.

Double Reeved hoists deliver important operational and structural advantages. A true vertical lift maintains the load centered beneath the trolley, resulting in equal trolley wheel loads. Balanced wheel loading allows for smaller and more economical crane girders, which often offsets the higher hoist cost at larger capacities. In many applications, the combination of reduced structural steel, improved load control, and true vertical lifting results in the most economical overall crane solution.

Hoists in this range are based on the Street ZX6, Street ZX8, or Street ZX10 frames and are available with 2, 4, 6, 8, 12, or 16 falls of wire rope. Multiple combinations of brakes, motors, gearboxes, and drum diameters provide a wide range of lifting speeds, duty classifications, and heights of lift to suit demanding industrial applications.

Foot Mounted ZX electric wire rope hosts

Capacities up to 88 tons

Street ZX base-mounted (foot-mounted) hoists are available in single-reeved or double-reeved (TVL – True Vertical Lift) configurations. Single-reeved hoists are available in capacities up to 35 tons, while double-reeved TVL hoists are available in capacities up to 88 tons, providing a true vertical lift with balanced load control.

Base-mounted hoists are the most economical solution for fixed-position lifting applications and can be installed on a wide variety of supporting structures or paired with a set of Street End Trucks for a custom application or gauge. They are also well suited for replacement applications, allowing ZX hoists to be installed on existing hoist trolleys or structures without requiring a complete crane replacement.

Hoists in this range are based on the Street ZX6, Street ZX8, or Street ZX10 platforms and are available with 2, 4, 6, 8, 12, or 16 falls of wire rope. Multiple combinations of brakes, motors, gearboxes, and drum diameters provide a wide range of lifting speeds, duty classifications, and heights of lift to suit demanding industrial applications.

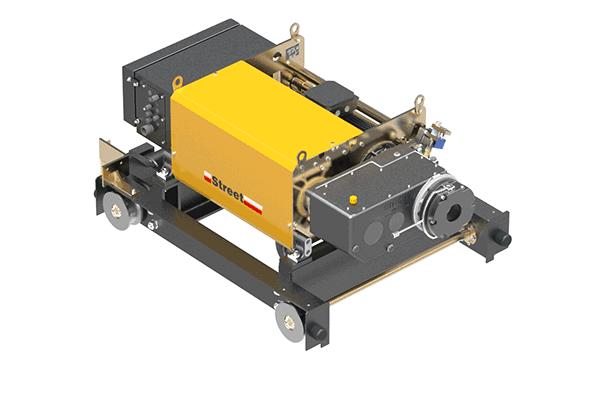

Top running double girder ZX hoist with field adjustable trolley gauge

Capacities up to 11 tons

When fast delivery and installation are critical, the variable-gauge hoist trolley from Street Crane provides a proven solution. This design is especially valuable when a customer’s crane is out of service and downtime must be minimized. We also have a submerged version with only 12.9″ headroom above the trolley rails for those tight fit situations.

Street supplies the variable-gauge hoist trolley as a kit, with trolley beams provided at their maximum length. The beams can be cut in your shop and the trolley set to the exact required gauge, allowing rapid installation without waiting for a custom-built trolley. This approach significantly reduces lead time compared to manufacturing a special hoist to a fixed gauge.

Available Configurations

Street ZX6
Capacity: 5 tons
Lift: approx. 21 ft – 33 ft
Rail Gauge Range: approx. 31.5 in – 84.0 in

Street ZX8
Capacity: 10 tons
Lift: approx. 26 ft – 39 ft
Rail Gauge Range: approx. 43.3 in – 84.0 in

Street ZX8 Submerged with only 12.9″ clearance above trolley rails
Capacity: 10 tons
Lift: approx. 26 ft
Rail Gauge Range: approx. 78.6 in – 141.7 in
