Single Girder Underslung Cranes

Capacities typically up to 10 tonnes

Optimise Your Space with a Single Beam Underslung Crane.

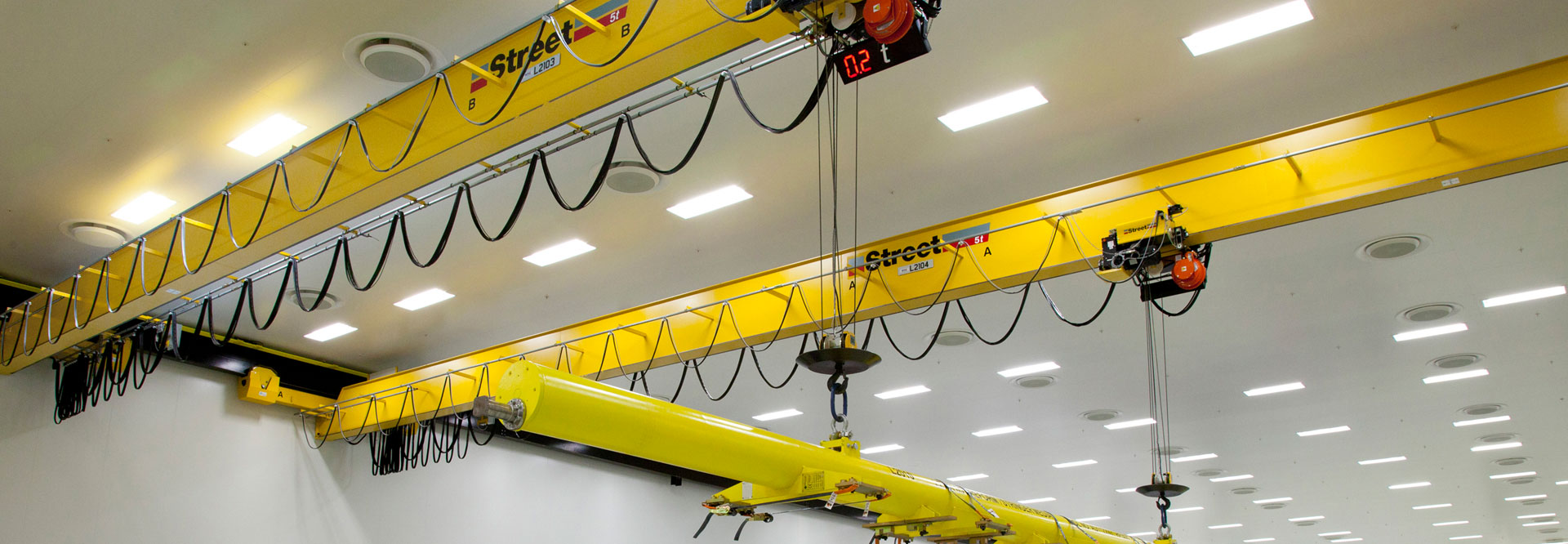

A single girder underslung crane is a type of overhead crane that hangs from your building’s roof steelwork instead of running on columns and gantry rails at floor level like a top-running single girder overhead crane would. That keeps the floor completely clear, makes the most of limited headroom, and lets you add overhead lifting to a building that was never designed for a crane. For loads up to around 10 tonnes, it’s often the most cost-effective way to cover a production area or warehouse.

Using a single beam keeps the crane light, which means less load on the roof structure, lower cost and a quicker installation. We build the bridge from a rolled section or a fabricated box beam, depending on your capacity and span. Our variable girder connection sets the girder height to win back as much height of lift as possible. Suspended end carriages allow cantilevers, so the hoist can travel past the runway line and reach areas close to walls that a top-running crane can’t. Multi-span systems can cover very large floor areas.

You can fit a Street LX electric chain hoist, which is compact and cost-effective for lighter, everyday lifting, or a Street ZX electric wire rope hoist for heavier duty cycles, higher speeds and longer lifts. You can operate it with a push-button pendant or with full radio remote control.

Is this the right crane for you? Underslung cranes depend on your roof structure being able to carry the crane and its loads, so we’ll check this with you before anything is specified. For heavier suspended lifting, a double girder underslung crane adds capacity while still keeping the floor clear. For the heaviest loads, a double girder overhead crane with a Street VX open winch hoist is the usual choice.

Every crane is manufactured under our BSI ISO 9001 certified quality system. Builders Profile accreditation gives you extra supplier assurance on projects in complex building structures.

Advantages of a single girder underslung crane:

Variable Girder Connection Design: Optimises the available height of lift for each application.
Suspended End Carriage Design: Allows for cantilevers (lateral overhangs) to provide increased hook coverage by enabling the hoist and load to travel beyond the runway track line.

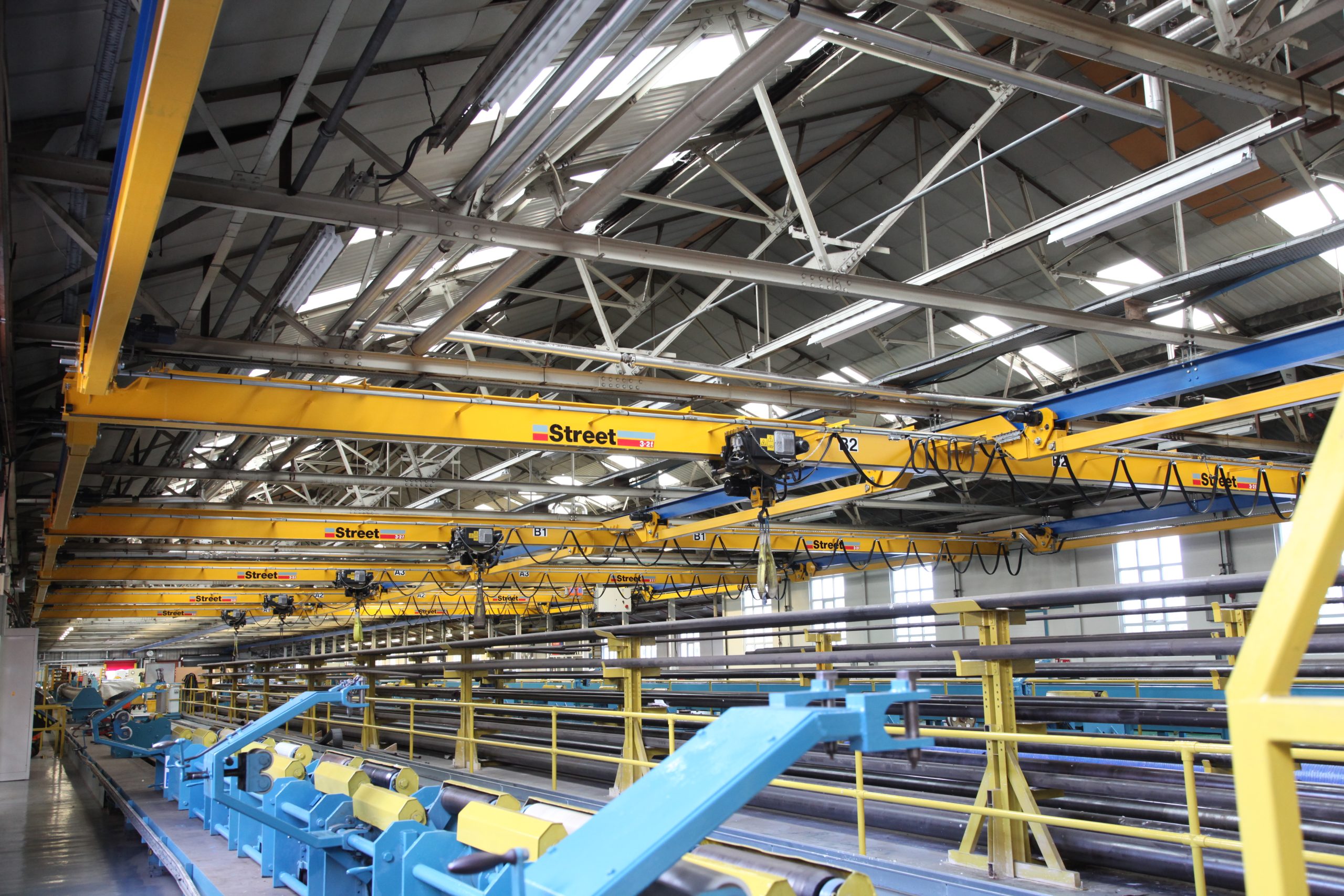

Multi-Span: Our multi-span cane systems can be suspended over very large work areas.
Flexible Control Systems: Can be operated using a push button pendant suspended from the crane bridge or via fully remote radio control.

Before installation, it’s crucial to ensure the roof structure can support the crane and its loads. Consulting with engineers can help address any structural concerns and optimize the crane’s performance.
